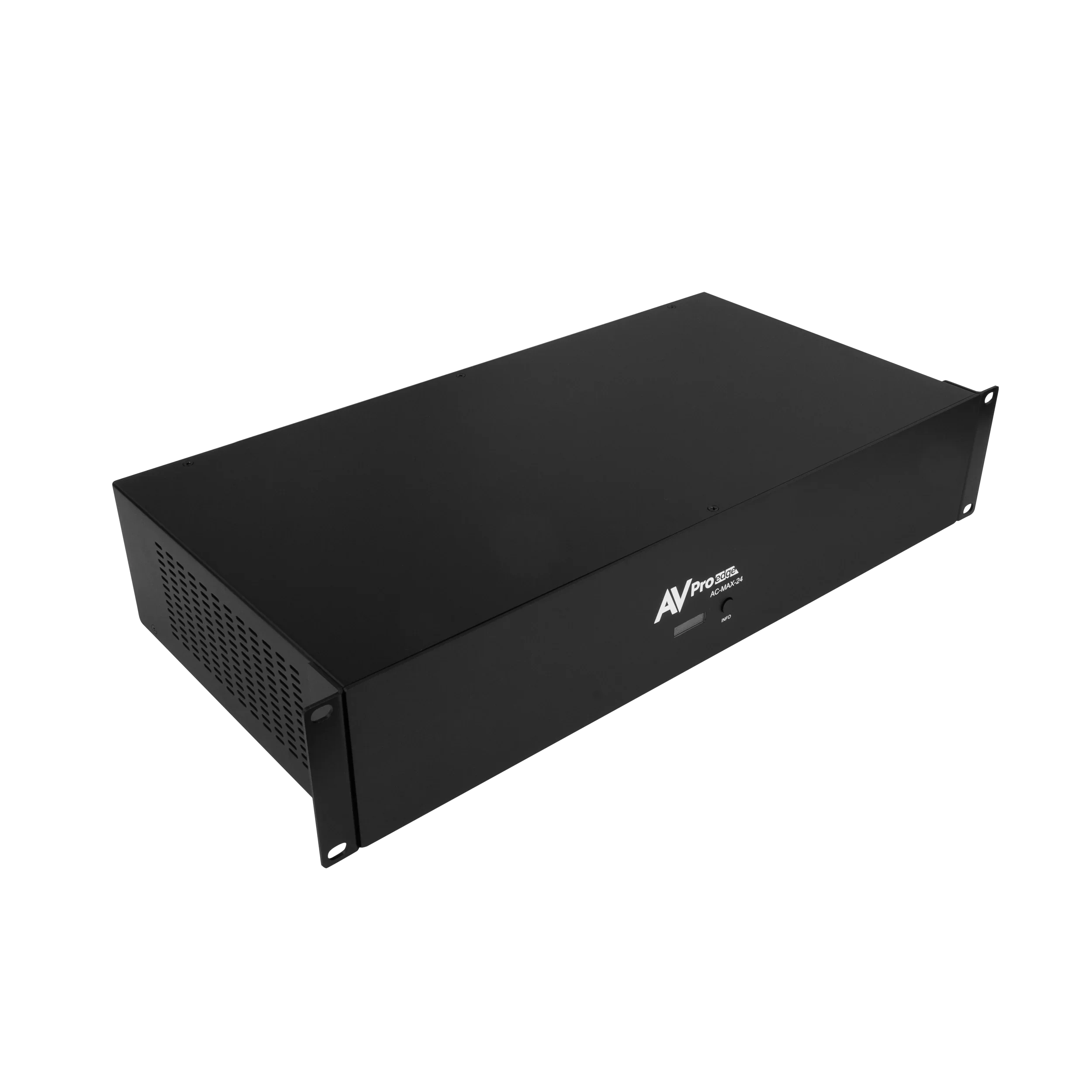

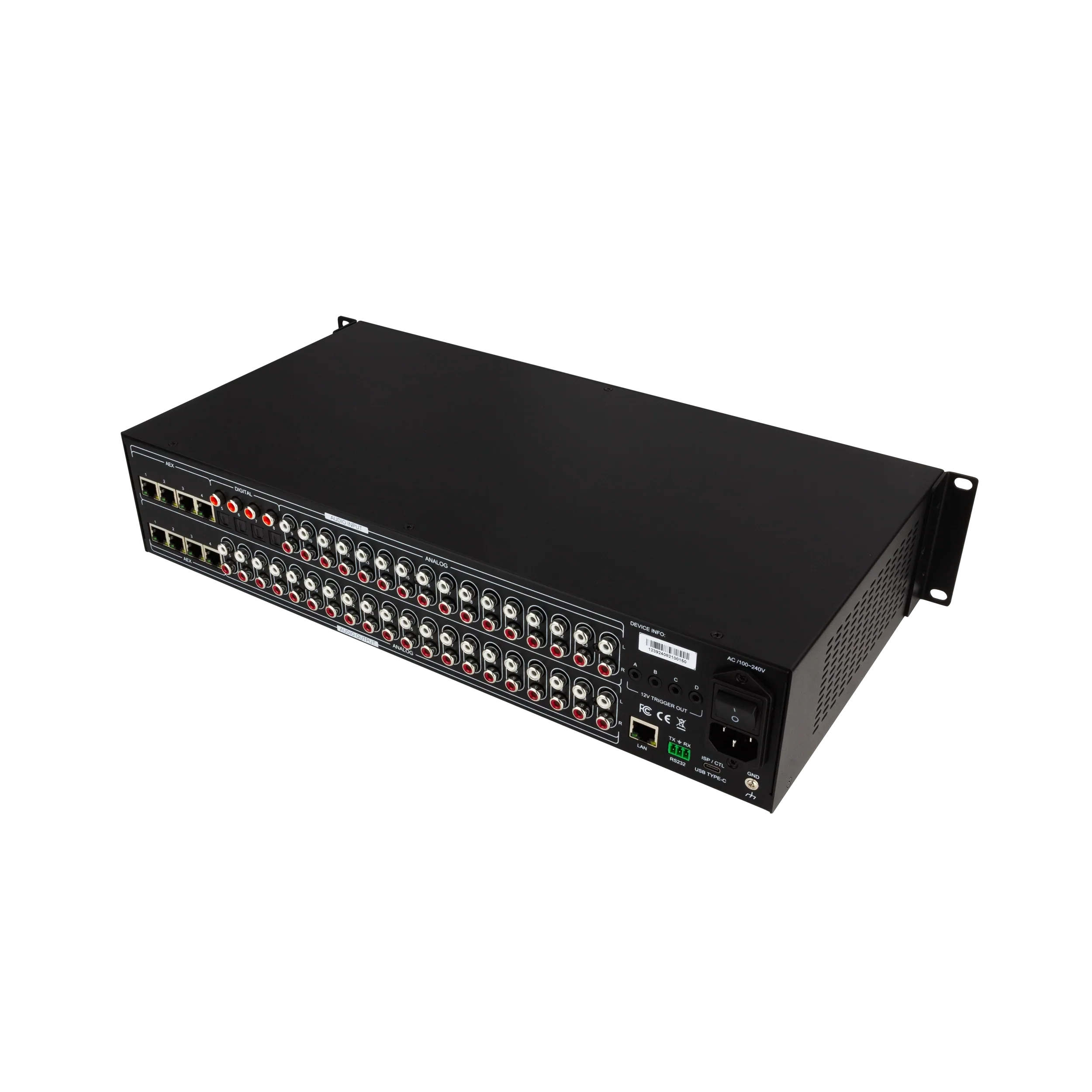

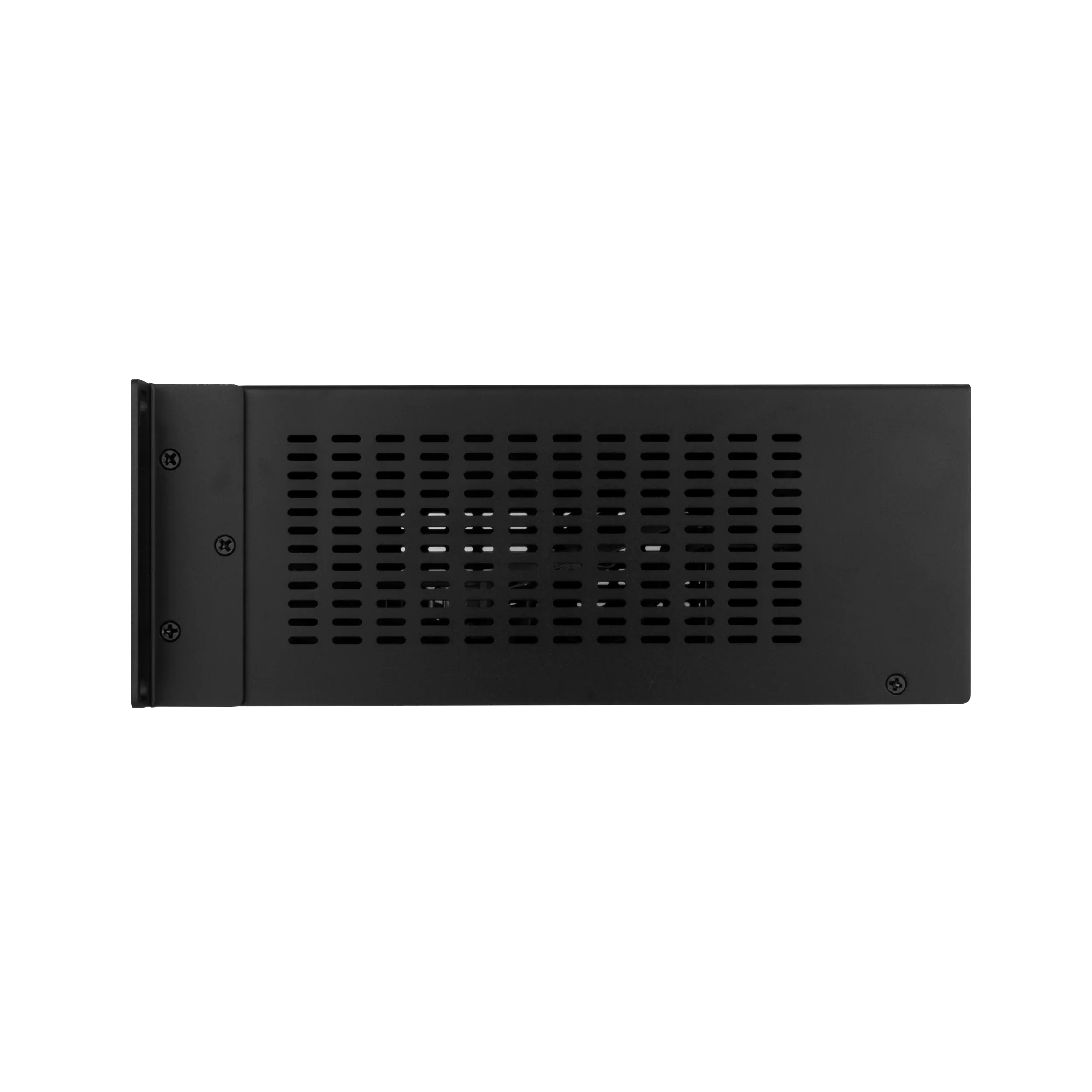

AVPro Edge 2CH 24x24 Audio Matrix Switcher With API Control

The AC-MAX-24 is a 24x24 audio matrix switcher designed to address distributed audio requirements for both digital and analog user experiences. It features 16 analog RCA unbalanced input pairs, 4 Coaxial/Toslink digital inputs, and convertible analog/digital de-centralized inputs. It provides 20 analog RCA unbalanced outputs and 4 de-centralized outputs. Equipped with 4 built-in de-centralized AEX receivers and 4 AEX analog/digital outputs, it facilitates signal transmission over distances up to 130M. Includes 4 x 12V trigger outputs for amplifier control. Integration-friendly with full support for major automation systems like C4, Crestron, Elan, and URC. Includes a comprehensive API and AVPro Edge GUI for signal routing, volume, balance, tone, and EQ customization.

Frequency Response	20 Hz to 20 kHz
Analog Input Voltage	1.63 VRMS, 4.6 Vp-p
Analog Output Voltage	1.63 VRMS, 4.6 Vp-p
Digital Format	2 Channel PCM
Supported Sample Rates	32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176 kHz, 192 kHz
Latency	≤60 milliseconds
Audio Inputs	4 AEX, 16 RCA, 4 TOSLINK, 4 Coaxial
Audio Outputs	4 AEX, 20 RCA
Control Interfaces	RS-232, IP/LAN
Rack Space	2U
