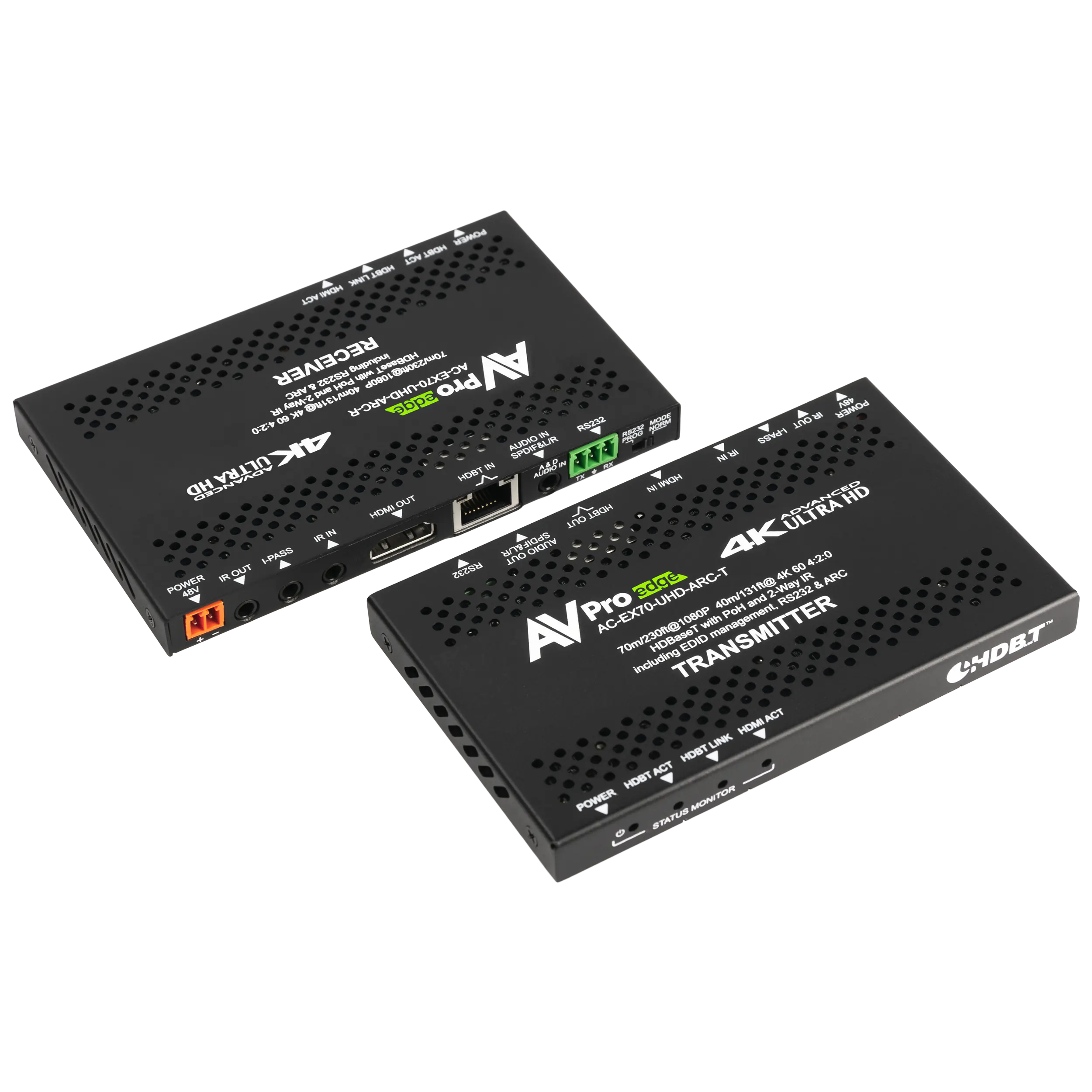

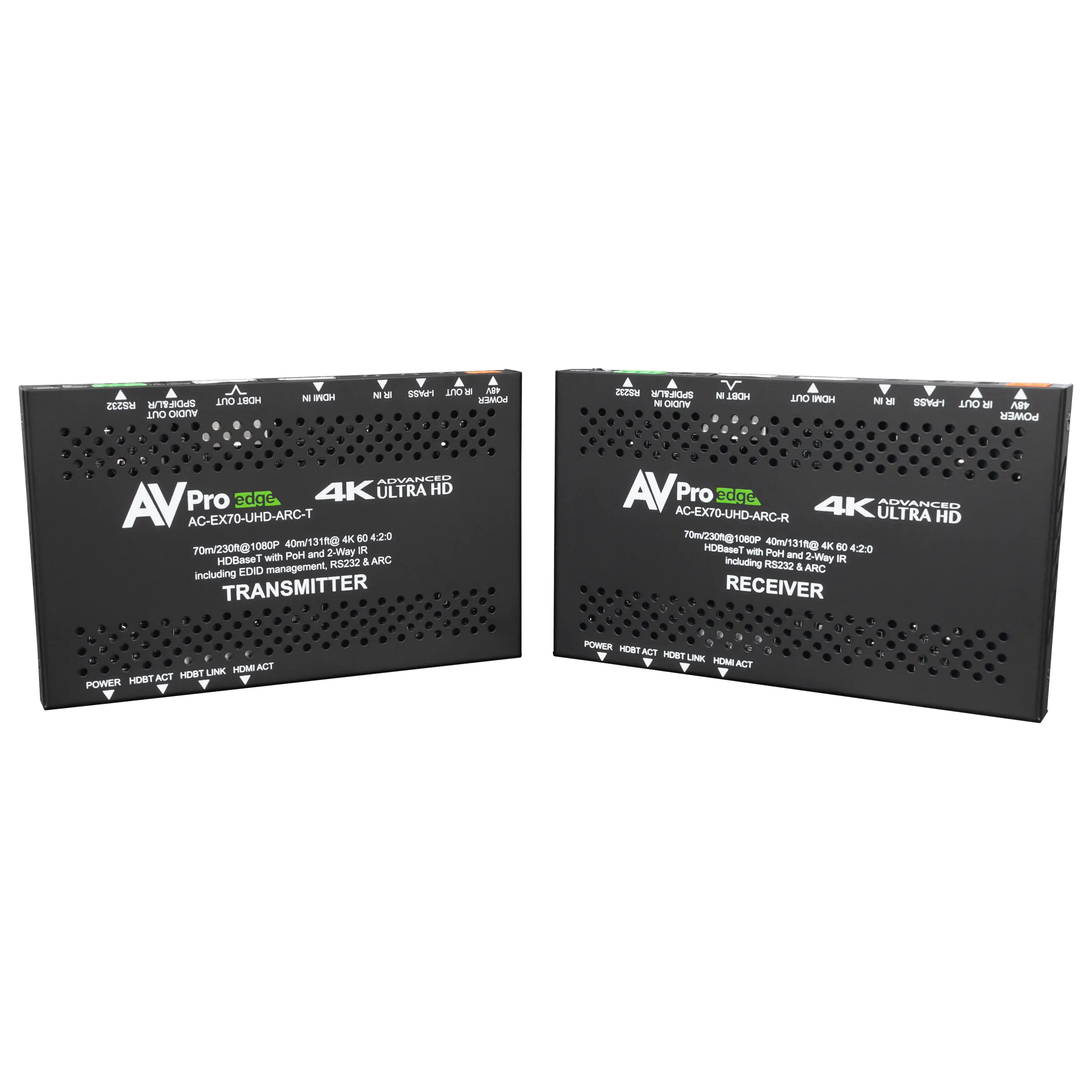

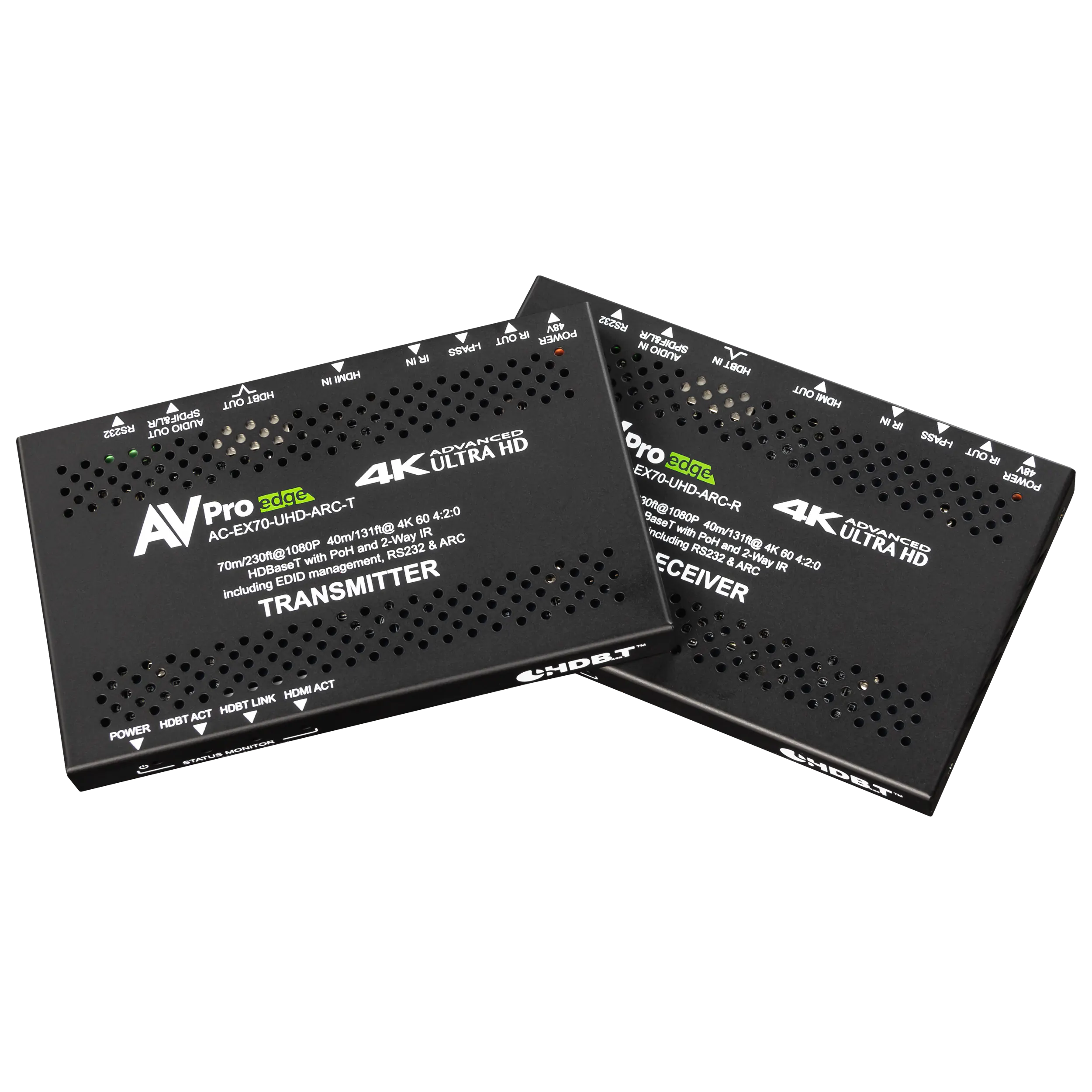

AVPro Edge 70M 10Gbps HDBaseT Extender Kit with ARC

The AVPro Edge AC-EX70-UHD-ARC is a professional HDBaseT extender kit designed for reliable 4K HDMI signal distribution over long distances. This kit supports resolutions up to 4K60 4:2:0 and 4K30 4:4:4, making it ideal for high-value commercial and residential AV installations. It features integrated Audio Return Channel (ARC) capabilities, allowing local audio from smart TV apps to be sent back to your headend for enhanced sound performance. The system supports bi-directional IR and RS-232 control, providing flexible management of sources and displays. With a transmission range of up to 70 meters for 1080p and 40 meters for 4K, it offers robust performance and simple installation via Cat 6a cabling.

Video Resolution	Up to 4K 60Hz 4:2:0 & 4K30 4:4:4
Transmission Distance (4K)	40 meters (131 feet)
Transmission Distance (1080p)	70 meters (230 feet)
Audio Support	ARC, PCM 2.0, LPCM 5.1/7.1, Dolby Atmos, DTS-X
Bandwidth	10.2 Gbps
HDCP Compliance	HDCP 2.3 and earlier
Control	Bi-directional IR, RS-232
Power Output	PoH (Power over HDBaseT)
Operating Temperature	23 to 125°F (-5 to 51°C)
