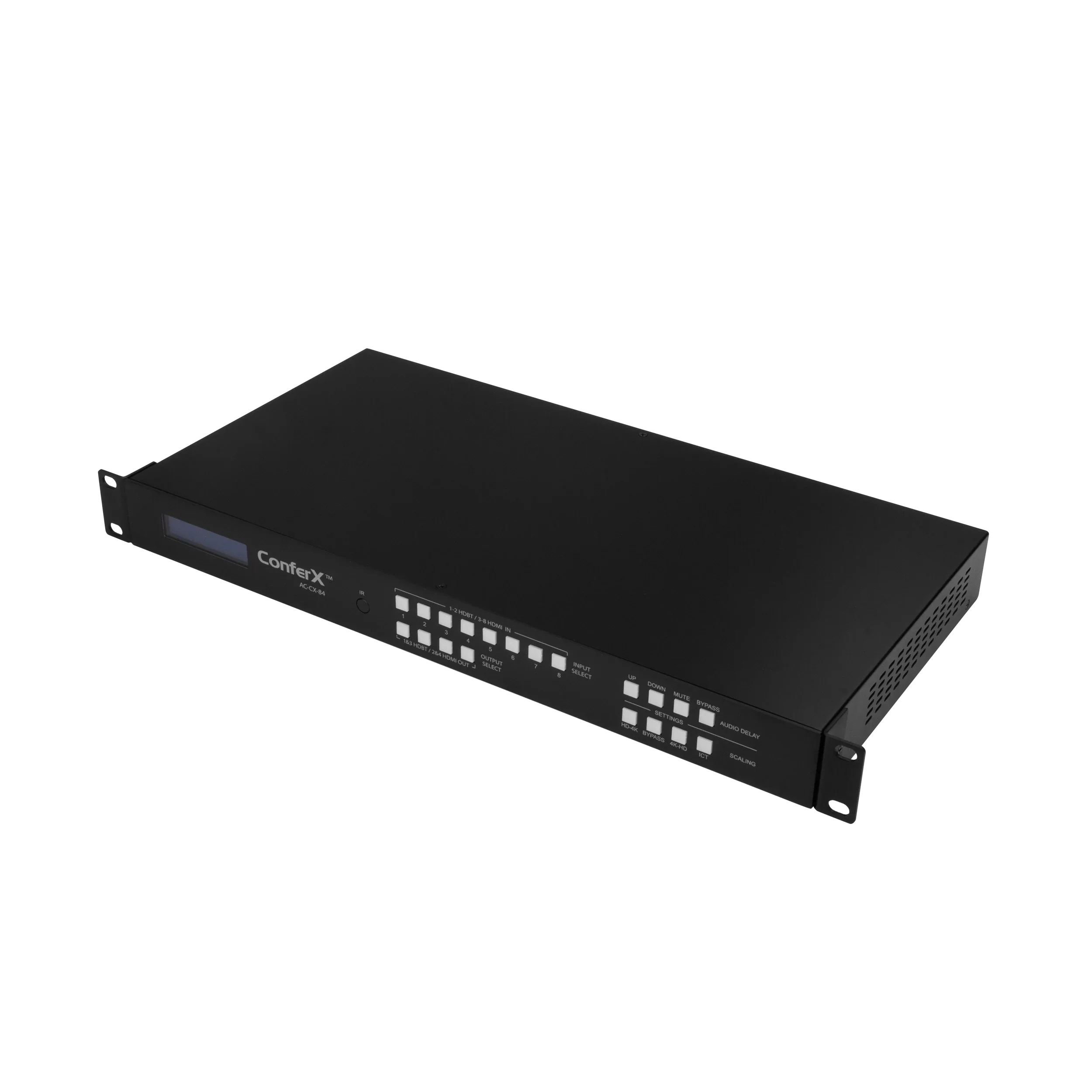

AVPro Edge ConferX 4K 8x4 Matrix Switcher Instant Switching

The AVPro Edge ConferX AC-CX-84 is a high-performance 4K 8x4 matrix switcher designed for demanding commercial AV environments. It delivers uncompressed 18 Gbps 4K/60Hz video signals while providing instant, seamless source switching. This unit features advanced scaling capabilities, including support for ultra-wide display resolutions like 21:9 and 32:9 aspect ratios. With bidirectional RS-232 support and HDMI stream control, it offers robust integration and management for modern office setups. The device supports HDBaseT interoperability and can power connected transmitters and receivers directly, simplifying installation. Its compact 1U design ensures efficient rack mounting in professional systems.

Resolution	Up to 4K 60Hz 4:2:0 & 4K 30Hz 4:4:4
Bandwidth	18 Gbps
HDCP Version	2.3
Power Consumption	65 Watts Max

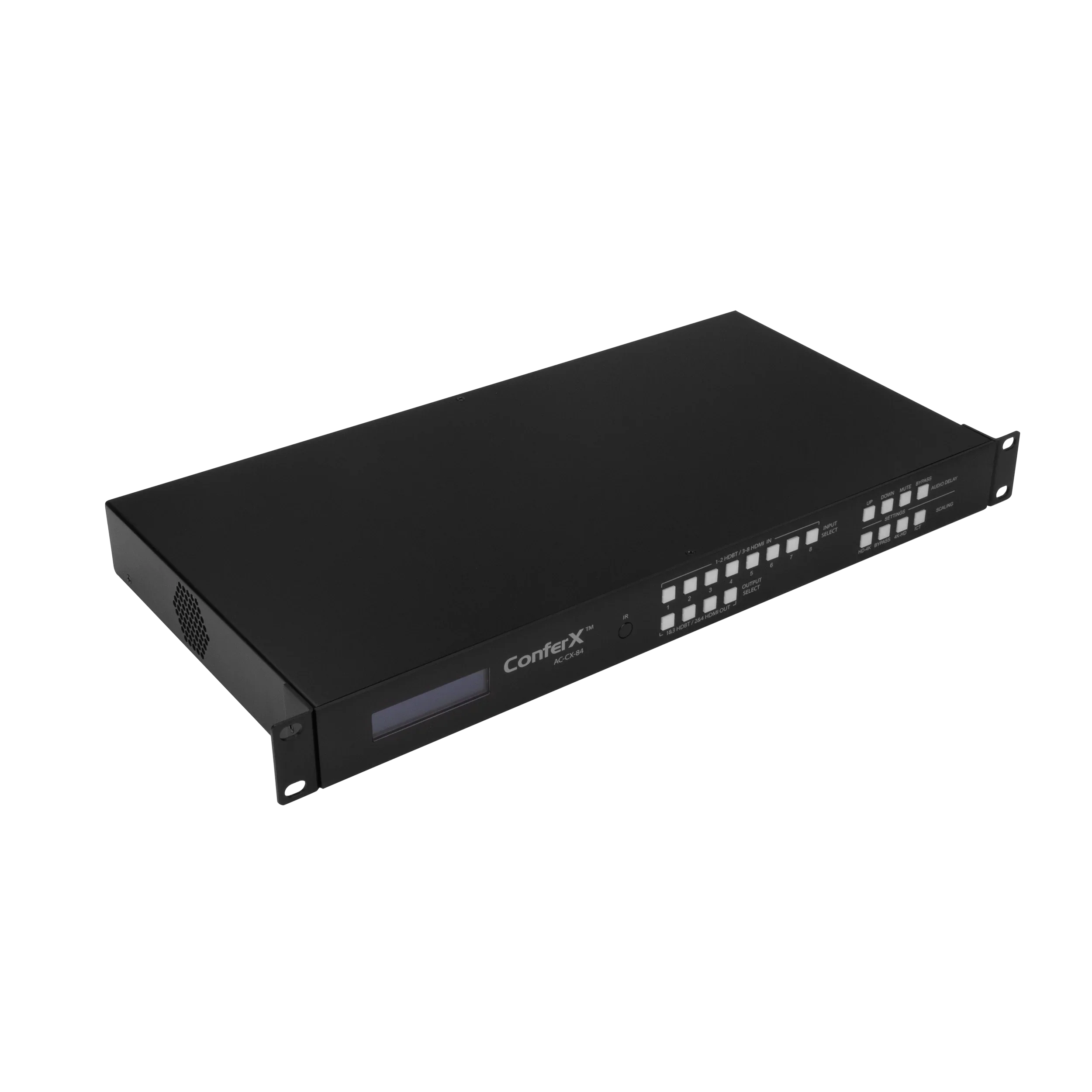

Rack Units	1U
Audio Formats	PCM, LPCM 5.1/7.1, Dolby Digital, DTS-X, Dolby Atmos
Weight	7.4 lbs
Dimensions	2 x 10.25 x 17.375 inches
