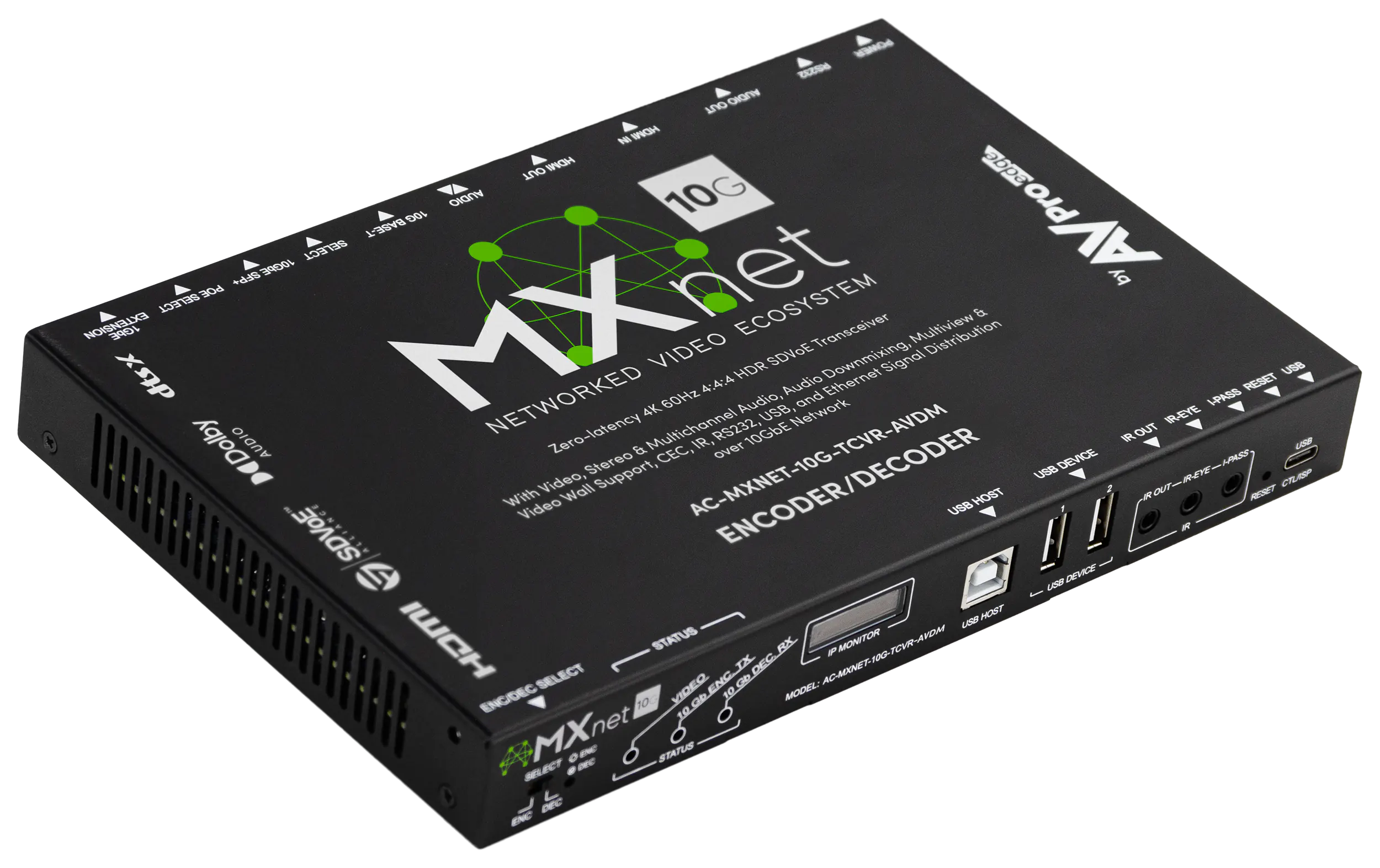

AVPro Edge MXnet 10G SDVoE Transceiver with Downmixing

The AVPro Edge MXnet 10G SDVoE Transceiver with Downmixing is a sophisticated AV-over-IP solution designed for high-performance audio and video distribution. It features 8-channel audio downmixing to 2-channel, outputting balanced stereo analog audio from complex digital codecs like Dolby Atmos or DTS:X. The unit supports HDMI 2.0 and provides dual 10GbE ports, compatible with both copper and fiber connectivity. Genlock mode ensures synchronization with minimal latency, making it ideal for live performance or critical medical applications. Its versatile design natively supports multi-view compositing for up to 32 images and is video wall ready for arrays up to 8x8. With audio breakaway and independent routing, this transceiver offers unmatched flexibility in professional AV system design. The robust architecture is backed by a 10-year warranty, ensuring reliability in demanding integration environments.

Ports	10G Ethernet, 1G Ethernet, SFP+, HDMI In/Out, TOSLINK, 3-pin Audio, 3.5mm Audio, IR, RS232, USB
Audio Downmixing	8-channel to 2-channel stereo
HDMI Support	HDMI 2.0b
Operating Temperature	23°F to 125°F
Power	PoE (IEEE 802.3af), 12V 2A
Dimensions (Unit)	8.46 x 5.51 x 0.98 inches
Weight (Unit)	1.76 lbs
Warranty	10 Years
