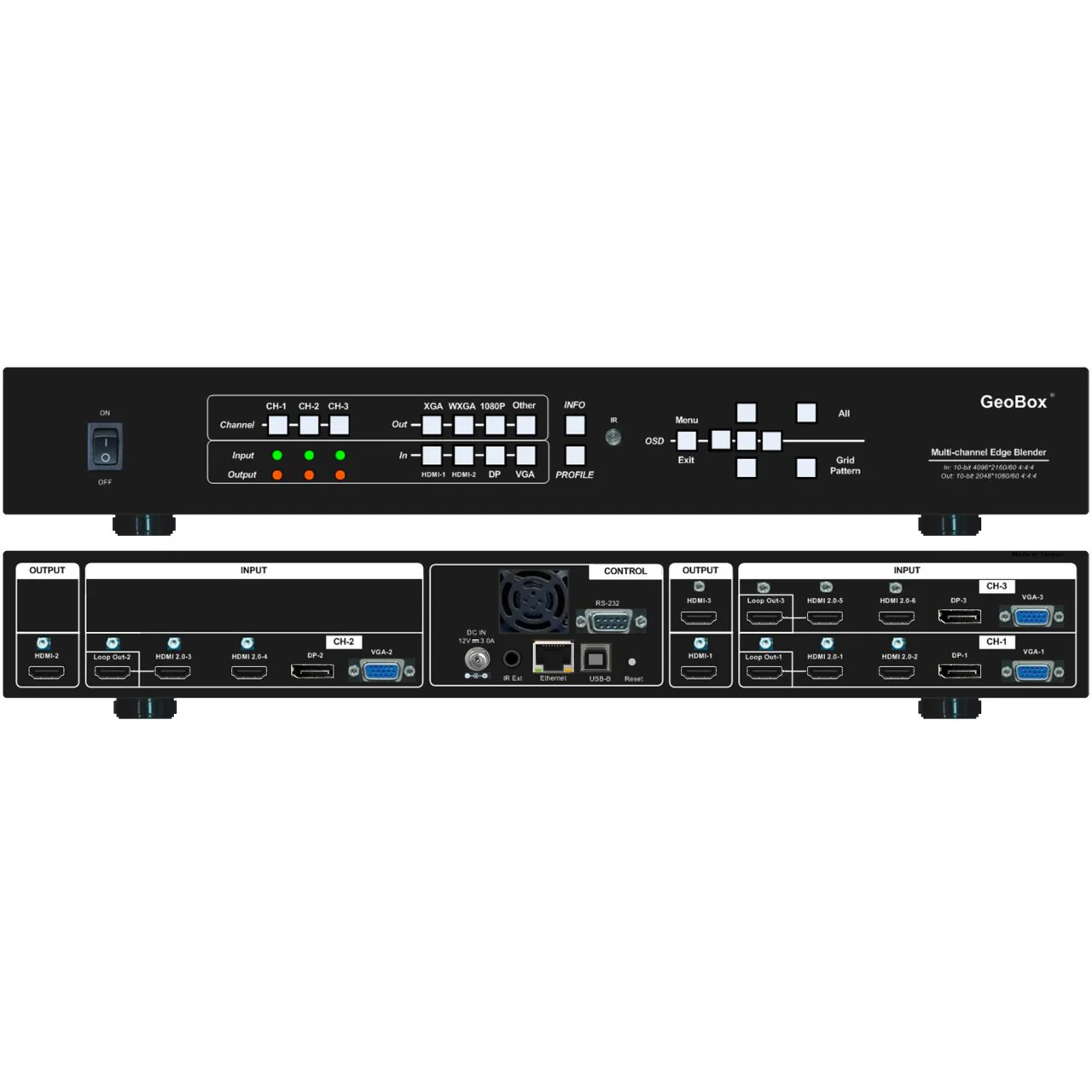

VigilLink M803ex 3-Channel 4K HDMI Edge Blending Mapping Processor

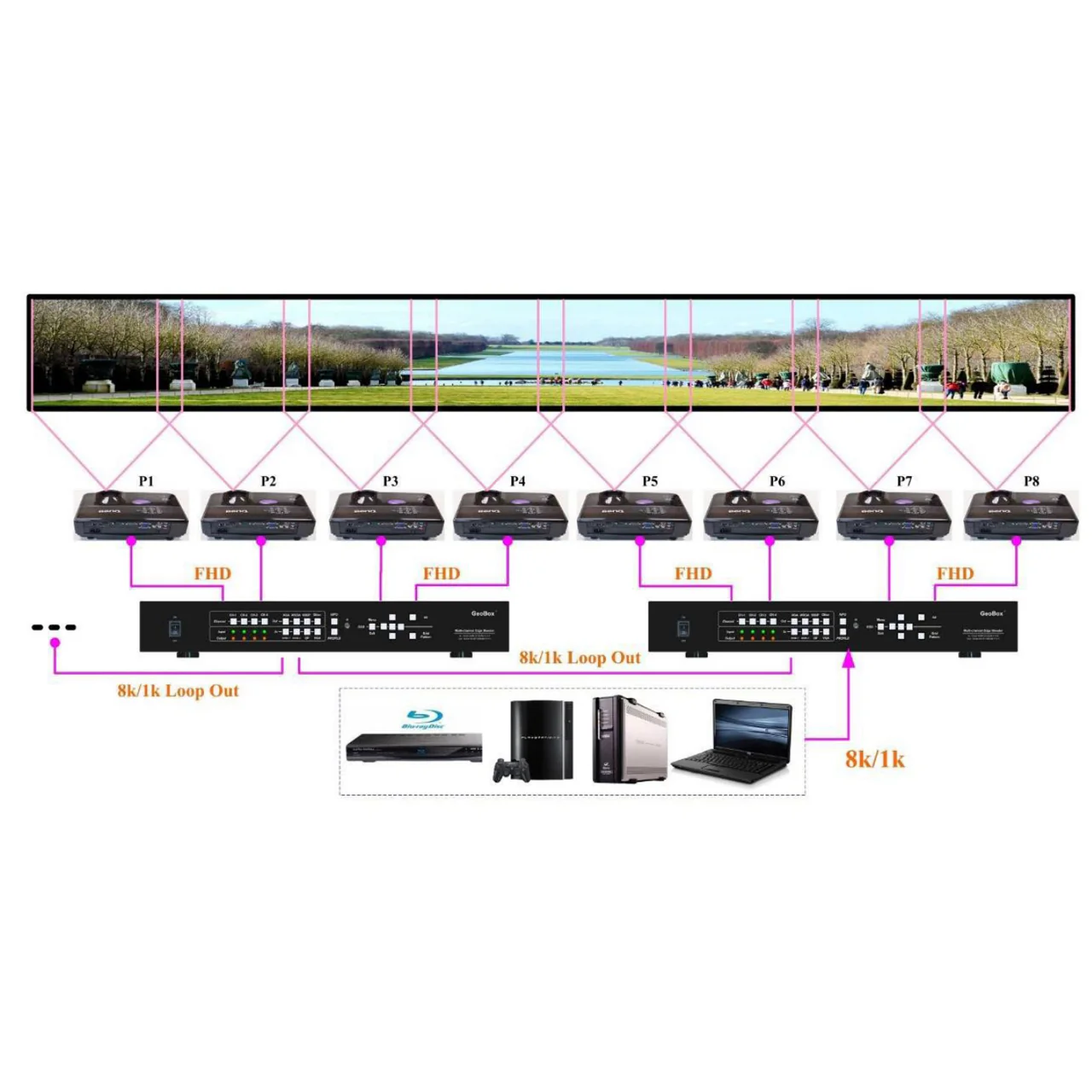

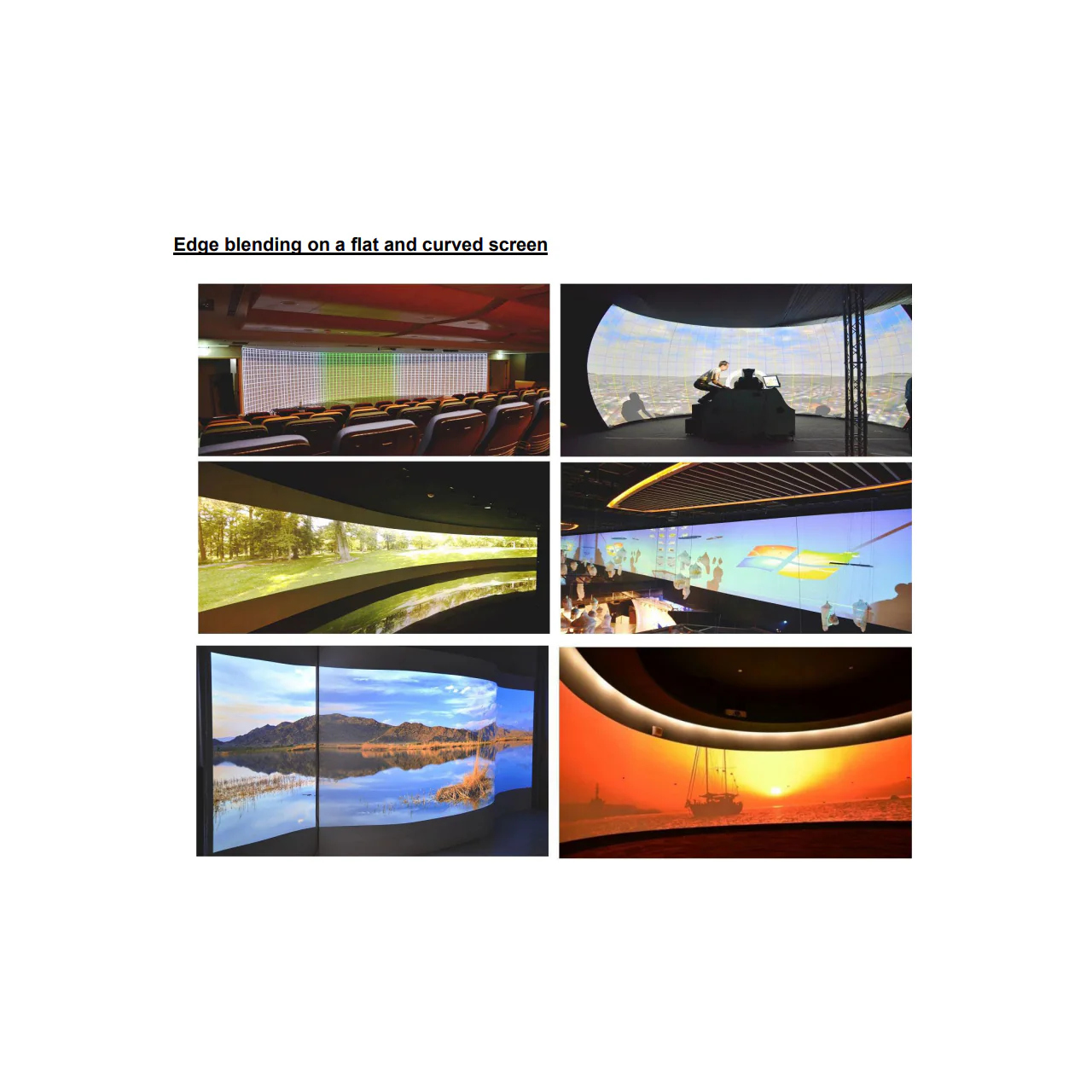

This professional-grade processor delivers advanced projection mapping and seamless edge blending for complex visual displays. It supports high-resolution inputs up to 8K30 and 4K60 with 4:4:4 chroma sampling for superior color accuracy. The integrated digital mapping function allows for precise geometric adjustments and automatic masking without manual intervention. Users can store up to ten custom patterns directly on the hardware to facilitate PC-free playback during live events. Sophisticated color correction tools including RGB gamma adjustment ensure uniform brightness and color across multi-projector setups. The modular design includes a 4K loop-out port for efficient daisy-chaining in large-scale video wall applications.

Channels	3
Input Resolution	Up to 7680x2160 @ 30Hz or 4096x2160 @ 60Hz
Output Resolution	Up to 2048x1080 @ 60Hz
Color Sampling	4:4:4 Chroma
Processing	10-bit color depth
System Latency	33ms (2 frames)
Control Interface	IR Remote, RS232, USB, Ethernet
HDCP Compliance	Input: V2.2/V1.4; Output: V1.4
Power Supply	DC 12V, 3.3A
Material	Industrial Grade Metal
